32 Channels

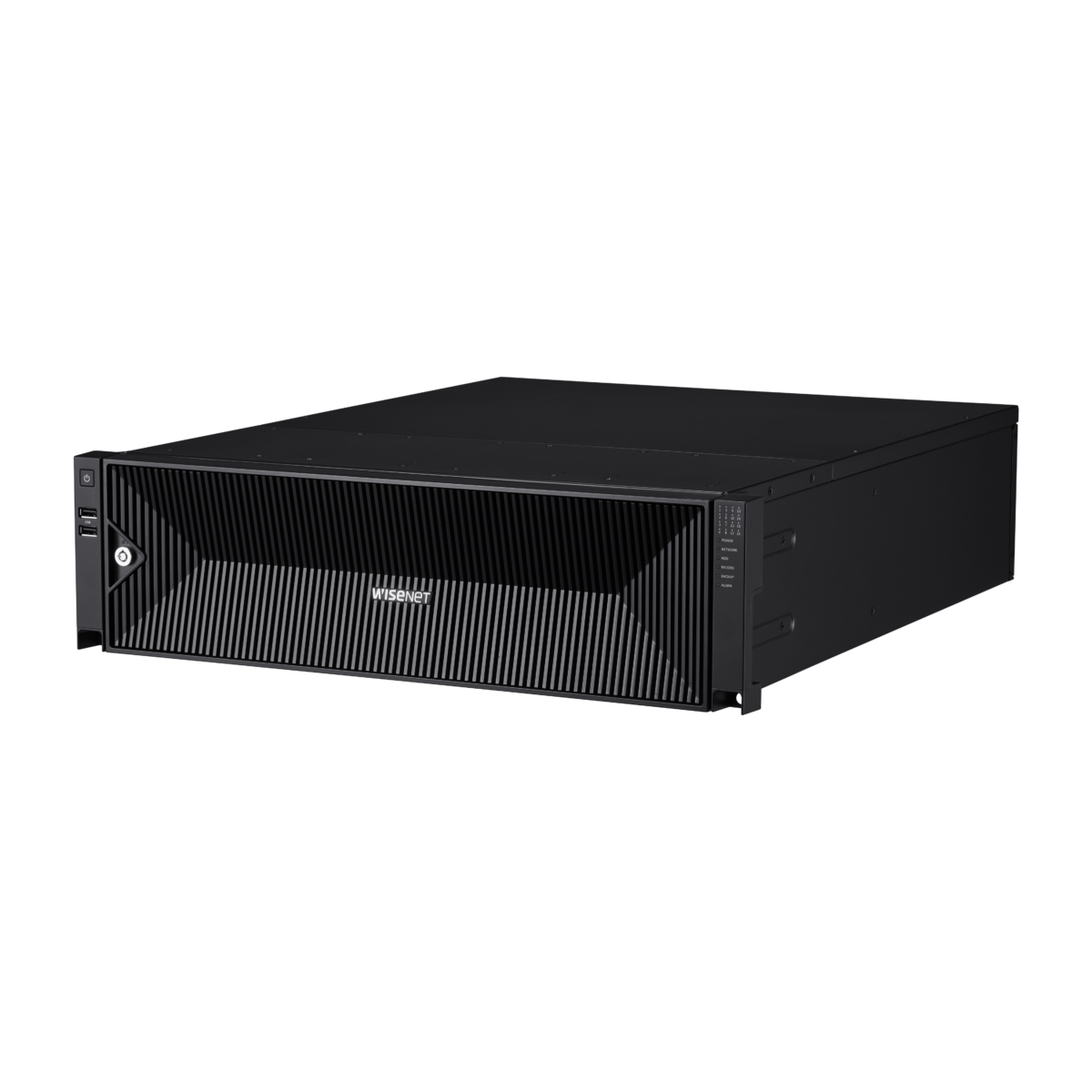

XRN-3210B4

32CH 32MP NVR

Key Features

• Up to 32CH, 32MP Resolution
• Max. 400Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• Bookmark management (Up to 100 set)
• H.265, H.264, MJPEG compression support
• SATA 16ea (Up to 160TB)
• RAID 5/6 support

Contact Sales Datasheet

["video-recorder","nvr","ch32"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

For supported HDD information, please visit the HDD compatibility list.

COMPATIBILITY LIST

Overview

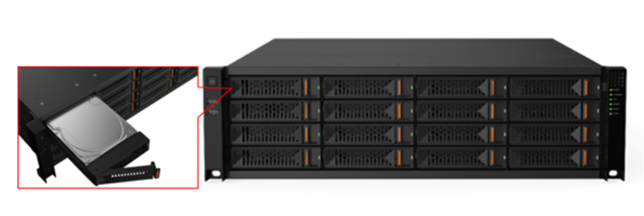

New hardware design
New XRN series applied totally new design for heat dissipation of HDD, FAN vibration damper, and its front cover can be locked and detachable.

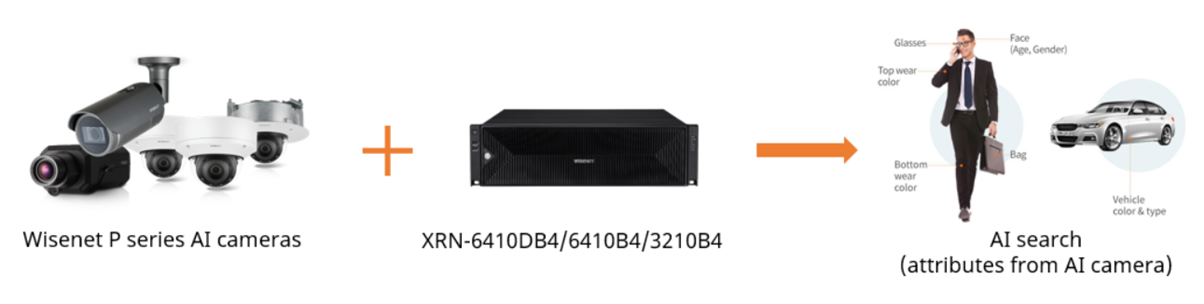

AI search working with Wisenet P series AI Cameras
XRN-6410DB4/6410B4/3210DB4 support AI search features when using with Wisenet P series AI cameras. Users can search various attributes from AI cameras such as people (gender, age, hat, bag, color of clothes) and vehicle (type, color).



Product Specification

Display
Network cameraInputsMax. 32CH
Resolution32MP ~ CIF
ProtocolsSUNAPI, ONVIF
DecodingLocal Display[Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz)
Multi Screen Display[Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)
Performance
Operating SystemEmbeddedLinux
RecordCompressionH.265, H.264, MJPEG
Recording BandwidthDistributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps [RAID mode] Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps
Resolution32MP ~ CIF
ModeNormal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event TriggerAlarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Event Actione-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
Search & PlayPlayback BandwidthRAID Mode : Max. 64Mbps(32CH simultaneously) Non-RAID Mode : Max. 32Mbps
UserMax. 4 Users (Local 1, Remote 3)
Simultaneous playbackMax. 80CH(Local 32CH, Remote 16CH per user)
Fisheye DewarpingSupport (Local 1CH), CMS
ModeDate & Time(Calendar), Event list, Text Search, Smart Search
ResolutionCIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Playback ControlFast/Slow Forward / Backward, Move one step Up / Down
StorageSupported HDDUp to 10TB
HDD SlotSATA 16ea(Max. 160TB, Non-RAID mode), Hot swap
ExternaliSCSI storage
RAIDRAID-5/6(Array Size : 8 HDDs x 2 Array)
BackupFile backupBU/Exe/AVI(GUI), JPG/AVI(Network)
FunctionMulti channel(Up to 16CH) Play, Date-Time/Title display
Network
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNSHanwha DDNS
Transmission BandwidthMax. 400Mbps
AudioInput/Output32 CH(network)
CompressionG.711, G.726, AAC(16/48KHz)
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewerSupported OSWindows 10, macOS 10.13
Supported browserGoogle Chrome, Microsoft Edge, Mac Safari
Viewer SoftwareSSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Function
Camera SetupRegisterAuto, Manual
ItemIP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZControlVia GUI, Webviewer, SPC-2000
Preset300 Presets
Smart phoneSupport ModeliOS, Android
Protocol SupportRTP, RTSP, HTTP, CGI(SUNAPI)
ControlLive 16CH(Multi-Profile Support), Playback 4CH
Max. Remote UsersSearch(3), Live Unicast(10)
RedundancyFailoverN+1
ARBSupport
Easy configurationP2P(QR code)
Interface
FrontIndicatorHDD, Alarm, Power, Record, Backup, Network, RAID
StorageOK
ResetPower button
HDD KeylockOK
HDMI2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz
AudioOut 1EA (3.5mm Audio Jack)
EthernetRJ-45 3EA (LAN/WAN, 1Gbps)
AlarmIn 8EA, Out 4EA
USB4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0)
Power inletAC 1EA
System
LogLog ListMax. 100,000 (System Log, Event Log each)
System ControlMouse, Keyboard, Web, Controller (SPC-2000)
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature0°C to +40°C(32℉ to 104℉)
Operating Humidity20% ~ 85% RH
Electrical
Power Input100 ~ 240 VAC ±10%; 50/60Hz, 2.7A(Single SMPS)
Power ConsumptionMax. 265W(904.2 BTU with HDD 16ea)
Mechanical
Color / MaterialBlack / Metal
Dimension440.0 x 132.0 x 571.1 mm (17.32 x 5.20 x 22.48 inch)
WeightApprox. 13.4Kg(29.6lb, HDD not included)
Intelligent Analysis
AI SearchObject AttributeCompatible with Hanwha AI Cameras
