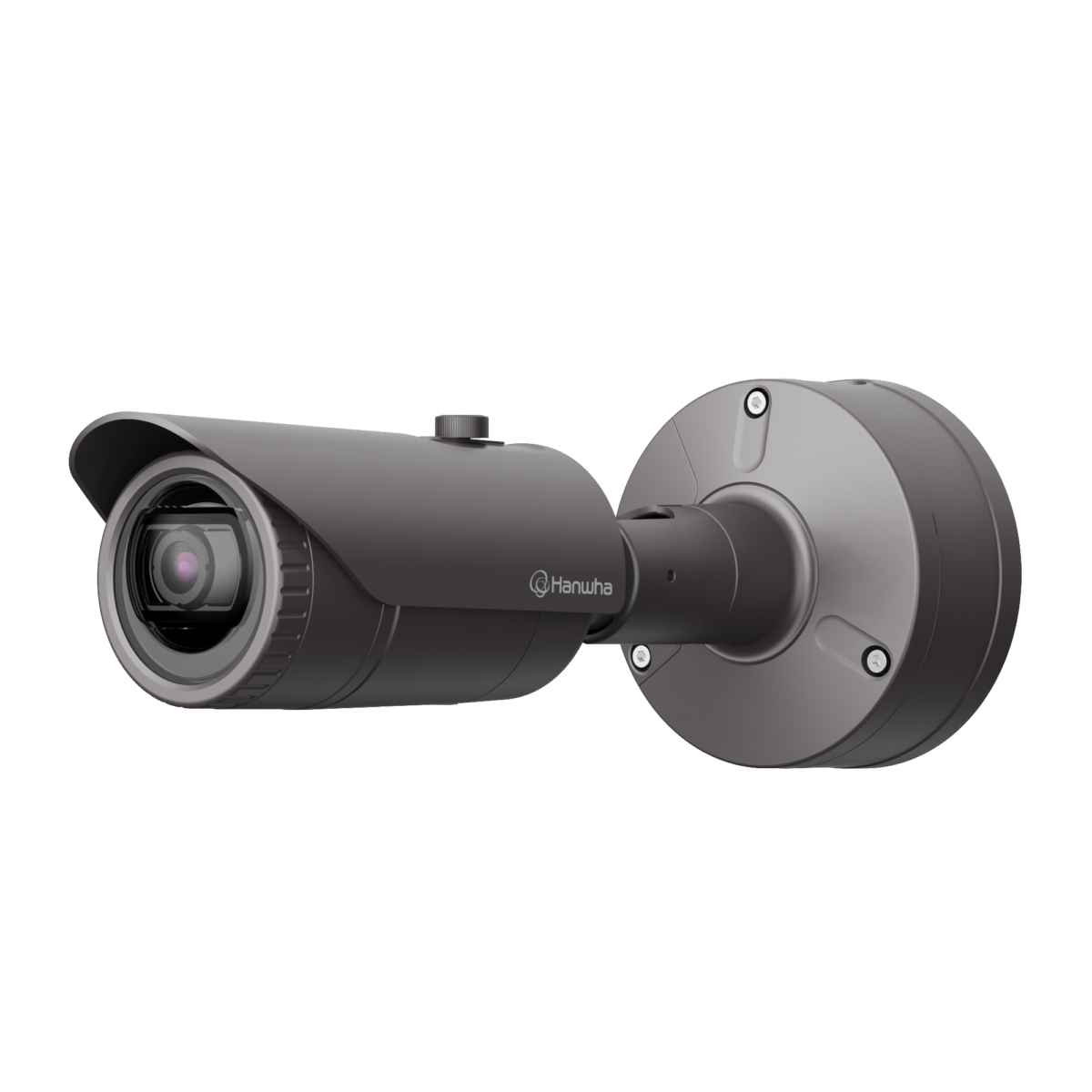

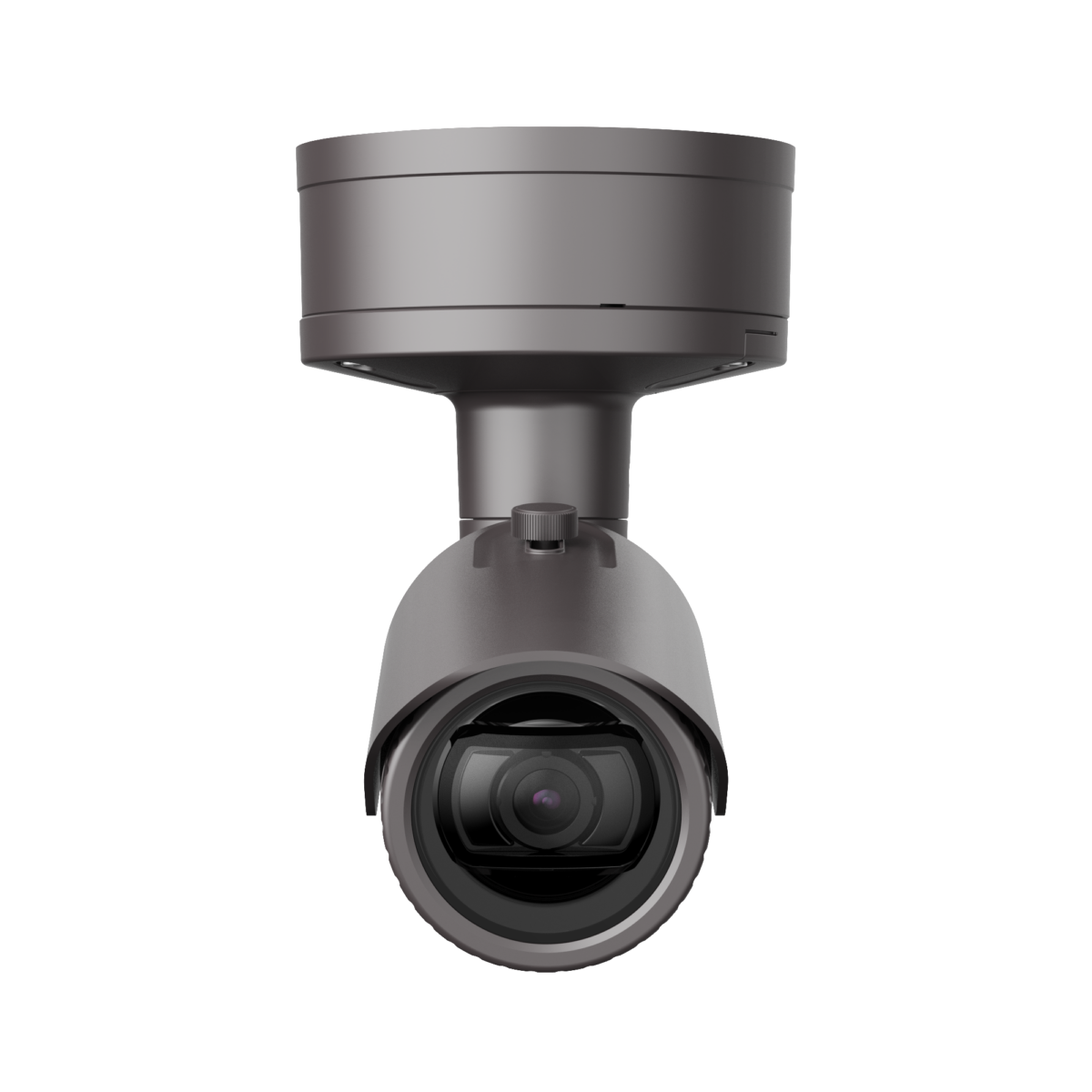

XNO-6010R

2M H.265 IR Bullet Camera

Key Features

• Built-in 2.4mm fixed lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots(Max. 512GB), WiseStream II support
• IP67/IP66, NEMA 4X, IK10

Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution320x240, 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x600, 800x448
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.055
BW(1/30sec, 30IRE)0.0055
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)2.4
Max Aperture Ratio (F number)Wide2.0
Angular Field of ViewHorizontal139°
Vertical73°
Diagonal167°
Min. Object Distance0.5m(1.64ft)
Focus ControlFixed
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, DWDR, WDR, SSDR, HLC
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionRed, Mosaic, Gray, Blue, Green, White, Black
Gain ControlMiddle, Low, High
White BalanceAWC, Manual, Indoor, ATW, Outdoor
LDCSupport
Electronic ShutterModeMaximum, Minimum, Anti flicker
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersNetwork disconnect, Alarm input, Analytics
Alarm Events When Alarm Trigger OccurredAlarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP, Notification: e-mail
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR20m(65.62ft)
IR Wavelength850nm
Auto TrackingSupport
Analytics
Analytics EventsNormalFog detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Digital auto tracking, Virtual line(Crossing, Direction) , Sound classification, Tampering, Motion detection, Face detection, Audio detection
Business IntelligenceNormalHeatmap, Queue management, People counting
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz, AAC-LC: 48Kbps at 16KHz
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolHTTPS, RTP(UDP), PIM-SM, IPv4, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour
Application Programming InterfaceONVIFT, S, G
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 2slot(Total 512GB)
Environmental & Electrical
Operating ConditionTemperature-30°C~+55°C(-22°F~+131°F)
Humidity0~90% RH(non-condensing)
OthersStart up should be done at above -20°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax 9.7W
12VDCMax 8.8W
Mechanical
ColorDark grey
MaterialAluminum
Product DimensionsØ70x296mm(2.76x11.65")
Product Weight1,220g(2.69lb)
Certifications & Standards
EnvironmentNEMA 250 type 4X, IEC 60529 IP66, IEC 62262 IK10
