TNS-7000M

Name: TNS-7000M — 3MP Mono BCR Camera
Brand: Hanwha Vision
SKU: TNS-7000M-ar

3MP Mono BCR Camera

Key Features

• 3MP Image Resolution
• Modular Design Structure
• Max. Framerate 50fps
• IP67, IP66, IK10 Rated
• Barcode recognition, WiseBCR based on AI engine
- 1D Code, 2D Code are available

※ Lenses, LED modules, front cover, Ethernet/Power cables and brackets are sold separately as accessories

※ Product availability may vary by region, please contact your regional representative.

Flexible Modular Design

The 3MP mono BCR camera features a modular design for flexible combinations of lenses (6mm–25mm), LEDs, and covers. This allows for a tailored solution optimized for various viewing angles and installation environments.

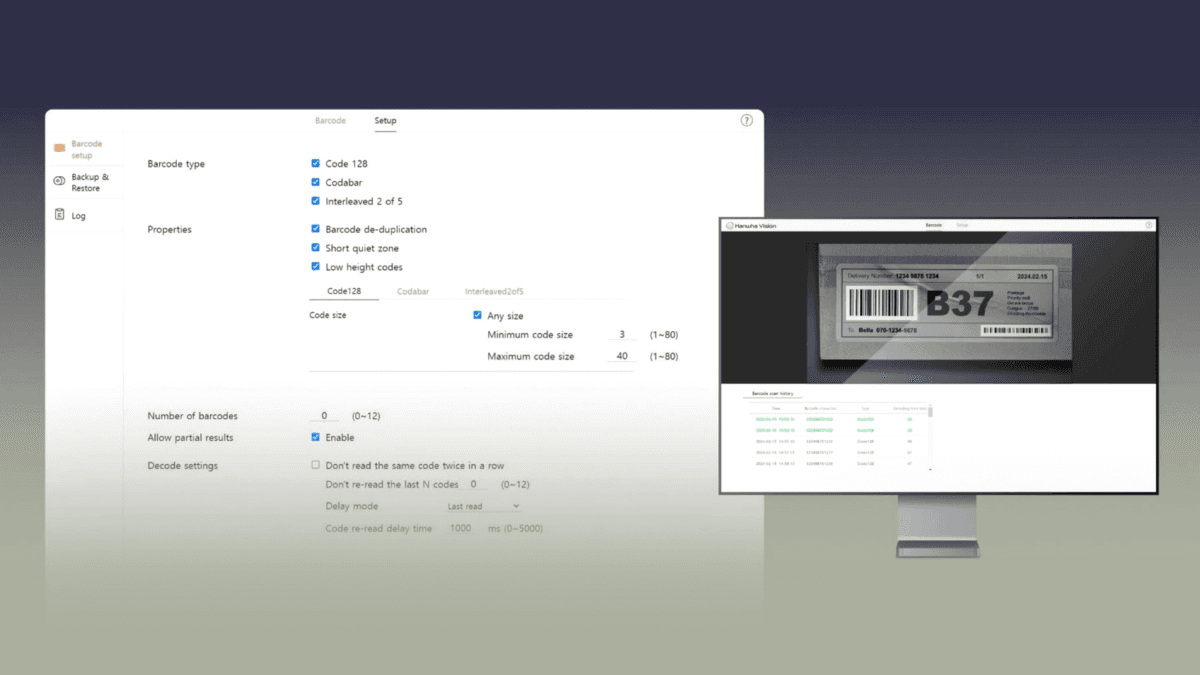

Streamlined Barcode Management

Pre-installed WiseBCR enables real-time barcode tracking and history review directly on the camera. This open-platform edge solution eliminates additional PC software, ensuring fast and cost-effective logistics management.

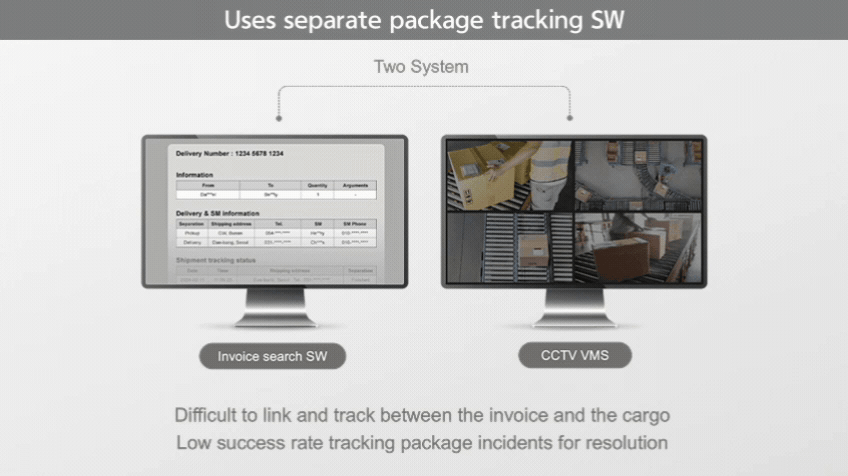

Single Source of Truth for Claims

This system automatically matches CCTV footage with barcode data, providing a single source of verifiable evidence. It enables quick searching and real-time tracking of lost or damaged parcels, significantly boosting service efficiency.

Specifications

Video

Imaging Device	Size	1/3"
Imaging Device	Type	CMOS
Resolution		2048x1536
Max. Framerate	H.265/H.264	50fps
Pixel Size		2.25㎛

Video

Imaging Device	Size	1/3"
Imaging Device	Type	CMOS
Resolution		2048x1536
Max. Framerate	H.265/H.264	50fps
Pixel Size		2.25㎛

Lens

Optional Lens

6mm/8mm/12mm/16mm/25mm

Operational

Backlight Compensation		HDR
Electronic Shutter	Mode	Minimum, Maximum, Global shutter mode
	Speed Range	33.3ms~150㎲
Video Rotation		Flip, Mirror
Alarm Interface	In/Out	Input 2ea, Output 2ea
Alarm Triggers		Alarm input
Alarm Events When Alarm Trigger Occurred		Trigger On/Off, Read/NoRead
LED Out		Support via optional LED accessories(M12 pin connections), White/Red/Blue option

Analytics

Advanced Analytics		Barcode recognition, WiseBCR based on AI engine
Barcode Type	1D Code	Code128, CODE39, CODE93, Codabar, ITF(Interleaved 2 of 5), UPC, EAN
Barcode Type	2D Code	QRcode, DataMatrix, Maxicode, PDF417

Network

Ethernet		RJ-45(10/100/1000BASE-T), M12
Video Compression		H.265/H.264: Main/High, MJPEG
Bitrate Control		H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming	Unicast	Up to 6 users
	Multicast	Support
	Multiple Streaming	Up to 3 profiles
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface	ONVIF	M
	Others	SUNAPI(HTTP API), Hanwha Vision Open Platform

General

Edge Storage

Micro SD/SDHC/SDXC

Max. 256GB x 1slot

Environmental & Electrical

Operating Condition	Temperature	-40°C~+55°C(-40°F~+131°F)
	Humidity	0~95% RH(non-condensing)
	Others	Start up should be done at above -30°C
Storage Condition	Temperature	-40°C~+60°C(-40°F~+140°F)
Storage Condition	Humidity	0~95% RH(non-condensing)
Input Voltage		24VDC
Power Consumption	24VDC	Max 12.9W, Typical 6.7W * Max: LED On Typical: LED Off

Mechanical

Color		White, Black
Material		Aluminum
RAL Code		RAL9003
Product Dimensions		W74.4mm x H77.4mm x D59.4mm
Product Weight		420g
Indicator LED		Support
Status LED		Support

Certifications & Standards

EMC		FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835
Safety		UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment		IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, IEC 60068-2-6, IEC 60068-2-27

Downloads

View Selection

DataSheets

	Category	File Name	Last Update
	DataSheet	DataSheet_TNS-7000M_20260806_AR_185010.pdf	2026-08-06

Manuals

	Category	File Name	Last Update
	Manuals	Manuals_TNS-7000M_251001_EN.pdf	2026-08-06
	Manuals	Manuals_TNS-7000M_260515_EN.pdf	2026-08-06

CAD

	Category	File Name	Last Update
	CAD	CAD_TNS-7000M_250728_Common.pdf	2026-08-06
	CAD	CAD_TNS-7000M_250728_Common.dxf	2026-08-06

Certification

Category	File Name	Last Update
Certification	Certification_TNS-7000M_250605_EN_EMC_CE,UKCA.pdf	2026-08-06
Certification	Certification_TNS-7000M_250605_EN_FCC,IC.pdf	2026-08-06
Certification	Certification_TNS-7000M_250605_EN_RCM.pdf	2026-08-06
Certification	Certification_TNS-7000M_250605_EN_VCCI.pdf	2026-08-06
Certification	Certification_TNS-7000M_250605_EN_DoC_CE.pdf	2026-08-06
Certification	Certification_TNS-7000M_250605_EN_DoC_UKCA.pdf	2026-08-06
Certification	Certification_TNS-7000M_250703_EN_UL.pdf	2026-08-06
Certification	Certification_TNS-7000M_250612_EN_IP66.pdf	2026-08-06
Certification	Certification_TNS-7000M_250612_EN_IK10.pdf	2026-08-06
Certification	Certification_TNS-7000M_250612_EN_IP67.pdf	2026-08-06
Certification	Certification_TNS-7000M_250612_KO_IP66.pdf	2026-08-06
Certification	Certification_TNS-7000M_250612_EN_60068-2-6,27.pdf	2026-08-06

Quick Guide

	Category	File Name	Last Update
	Quick Guide	Quick Guide_TNS-7000M_250625_AR.pdf	2026-08-06

Online Help

	Category	File Name	Last Update
	Online Help	Online Help_TNS-7000M,TNS-9060IBC,TNS-9050IBC,TNS-9040IBC_250825_EN_WiseBCR.pdf	2026-08-06

OpenSourceLicense

	Category	File Name	Last Update
	OpenSourceLicense	OpenSourceLicense_TNS-7000M_250508_EN.txt	2026-08-06

Firmware

	Category	File Name	Last Update
	Firmware	TNS-7000M_2.21.01_20260406_R136.zip	2026-04-27
	Firmware	WiseBCR_v_TNS-7000M_1_01_01_20260402.zip	2026-04-27

Accessories

SBO-BPM0

BCR Camera Bracket

SLM-5M06

BCR Camera 6mm Lens

SLM-5M08

BCR Camera 8mm Lens

SLM-5M12

BCR Camera 12mm Lens

SLM-5M16

BCR Camera 16mm Lens

SLM-5M25

BCR Camera 25mm Lens

SPF-BCB0

BCR Camera Clear Fiter Cover

SPF-BDB0

BCR Camera Diffusion Filter Cover

SPF-BPB0

BCR Camera Polarized Filter Cover

SPI-BWN0

BCR Camera LED module

SPI-BWM0

BCR Camera LED module

SPI-BWM1

BCR Camera LED module

SPI-BWW0

BCR Camera LED module

SPI-BBN0

BCR Camera LED module

SPI-BBM0

BCR Camera LED module

SPI-BBM1

BCR Camera LED module

SPI-BBW0

BCR Camera LED module

SPI-BRM0

BCR Camera LED module

SPI-BRM1

BCR Camera LED module

SPI-BRN0

BCR Camera LED module

SPI-BRW0

BCR Camera LED module

SPP-C08020E

M12-RJ45 Ethernet cable 2M (6.6ft)

SPP-C08050E

M12-RJ45 Ethernet cable 5M (16.4ft)

SPP-C08100E

M12-RJ45 Ethernet cable 10M (32.8ft)

SPP-C12020P

M12 Power cable 2M (6.6ft)

SPP-C12050P

M12 Power cable 5M (16.4ft)

SPP-C12100P

M12 Power cable 10M (32.8ft)
