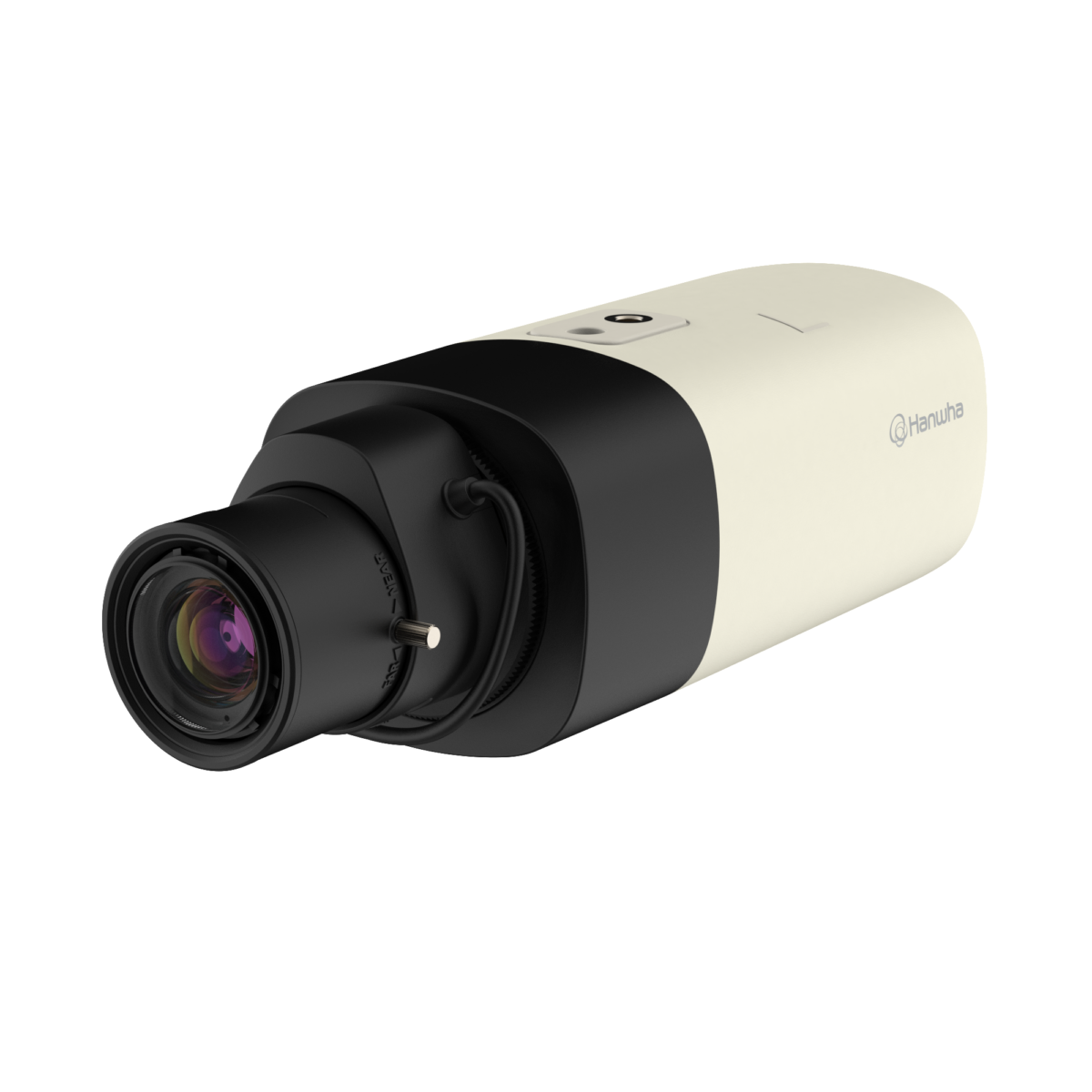

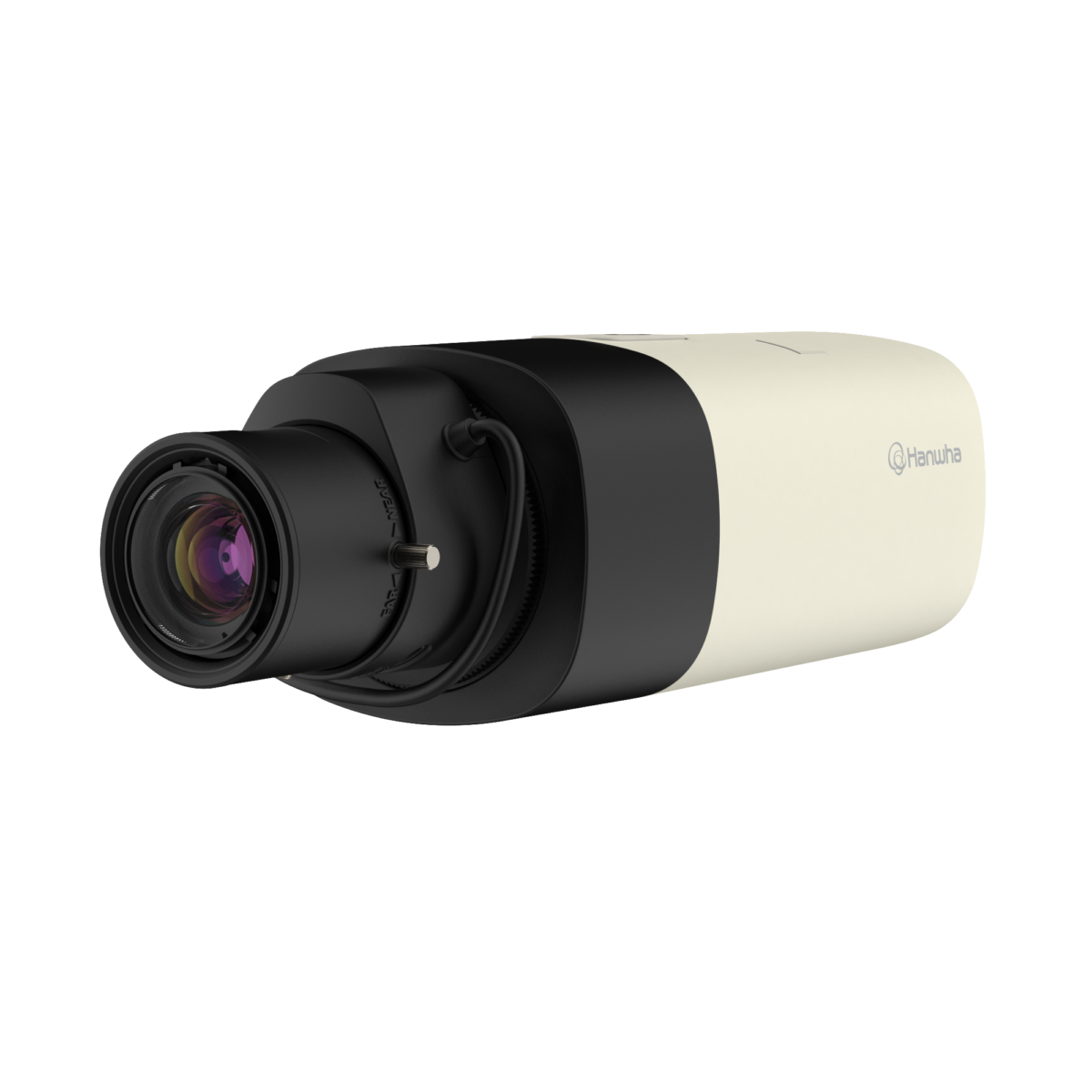

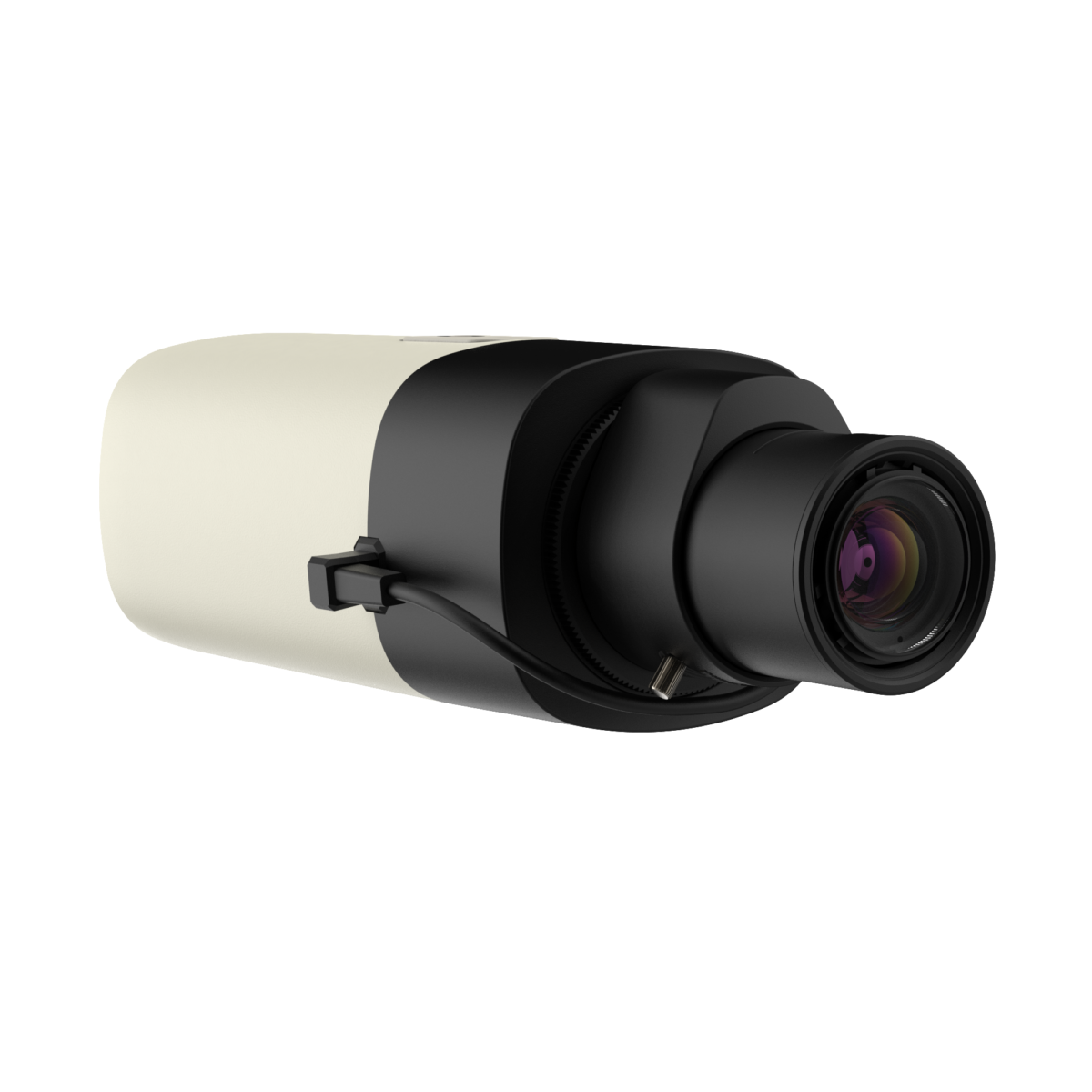

QNB-6002

2MP Box Camera

Key Features

• 0.01Lux@F1.2 (Color)
• Max. 30fps@2MP (H.265/H.264)
• Day & Night (ICR), WDR(120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Tampering
• SD 1slot (128GB)
• H.265, H.264, MJPEG codec, WiseStream II

Contact Sales Datasheet

["camera","network","box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

High quality cameras offering cost effective solutions
The new Wisenet Q series is an affordable product line that offers simple and essential features that are ideal in securing small to medium sized applications. It is packed with innovative features available in 2MP and 5MP options, setting new industry standards.
True WDR and performance in low light environments
The Q series achieves optimal performance by producing crystal-clear images regardless of the environment or time of day.



Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG15fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.01
BW(1/30sec, 30IRE)0.001
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focus ControlManual
Lens TypeDC auto iris, Manual
Mount TypeC mount, CS mount
Optional LensSLA-M2890DN
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNR
Motion DetectionQuantity4ea
Shape8point Polygonal zones
Privacy MaskingQuantity6ea
ShapeRectangular zones
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range1/5~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Serial InterfaceRS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)

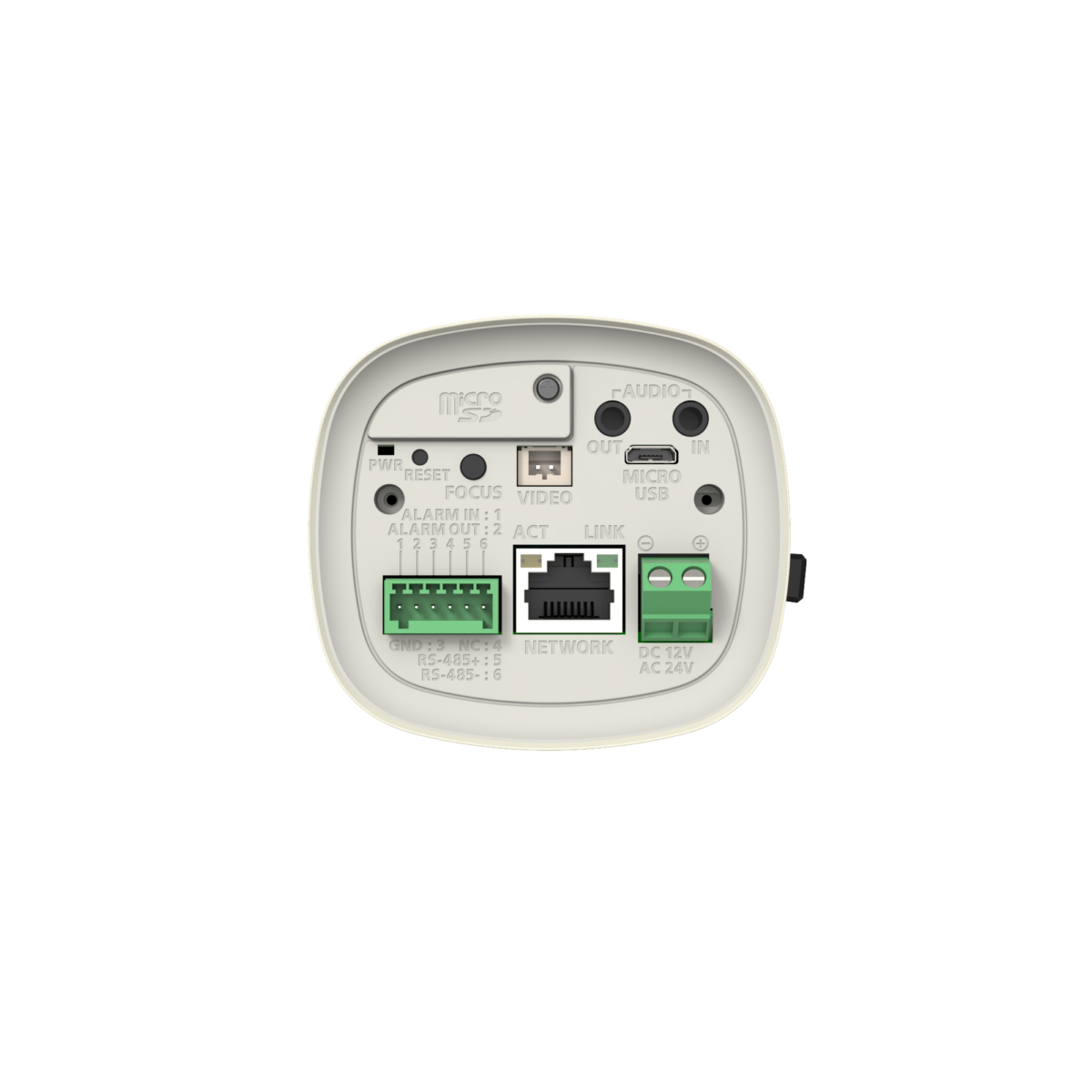

Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Analytics EventsNormalDefocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
Smart CodecWiseStreamⅡ
Bitrate ControlNone, H.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 6 users
MulticastSupport
Multiple StreamingUp to 3 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 128GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-10°C~+55°C(+14°F~+131°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-30°C~+60°C(-22°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax 6.4W, Typical 4.6W
12VDCMax 5.8W, Typical 4.1W
Mechanical
ColorIvory, Black
MaterialPlastic
Product Dimensions73.8(W)x66.6(H)X136.2(D)mm(2.9x2.6x5.4")
Product Weight320g(0.71lb)
